Dashboard and monitoring — portal, scrape, graph

Done: Prometheus scrapes itself on a lab-only bind, one nonsense target is down, and Grafana can graph the up series.

Requirements

Rebuild the scrape and the graphs on a lab guest or a workstation. The portal is a separate map of names. It is not this install.

• Hardware — one Linux guest or workstation with Docker Engine and Compose
• OS — Debian or Ubuntu with docker and the Compose plugin
• Hostname rule — prometheus.example.lab, grafana.example.lab, and home.example.lab. Change example.lab to your zone. Put the names on lab DNS, not public DNS.
• DNS — lab resolver you control. For the disposable prove on this machine, loopback is enough.
• Packages — Docker Engine, Compose plugin, images in the table below

Service	Port	Protocol	Notes
Prometheus	9090	TCP	UI and self-scrape. Bind to loopback or the lab proxy.
Grafana	3000	TCP	UI. Admin password from a mode-600 env file.

Image	Tag	Notes
prom/prometheus	v2.54.1	Pin a version. Do not follow latest for a rebuild you want to repeat.
grafana/grafana	11.2.0	Same rule.

Name	Change	Use
prometheus.example.lab	the zone	Prometheus UI behind the lab proxy
grafana.example.lab	the zone	Grafana UI behind the lab proxy
home.example.lab	the zone	Portal later. Not this procedure.
no-such-host.example.lab	keep as a name that must not answer	The down target

Procedure

Step 1 — Set the names

This prove binds loopback so the admin UIs are not published. Lab DNS and the proxy come after the scrape is honest.

1. Confirm Docker Engine and the Compose plugin. The hyphenated docker-compose binary is a different tool. This page uses docker compose.

   docker --version
   docker compose version

   Expected: Docker 24 or newer, Compose v2 or newer.

   Docker version 24.x.x
   Docker Compose version v2.x.x

2. Choose a lab zone. This page uses example.lab. Change it if your zone differs.

3. Record three names: prometheus.<zone>, grafana.<zone>, and home.<zone>. For this prove you will not put them in DNS yet.

4. Leave home.<zone> for Next. The portal is a map of links. It is not this install.

Step 2 — Write the env file

Grafana reads the admin user and password from this file at start. Keep the password out of compose.yaml.

1. Create the working directory and enter it.

   mkdir -p "$HOME/lab-dash"
   cd "$HOME/lab-dash"

2. Set umask 077 so the next file is created mode 600.

   umask 077

3. Write grafana.env. Replace <password> with a password you chose. Do not paste that password into this page.

   cat > grafana.env <<'EOF'
   GF_SECURITY_ADMIN_USER=admin
   GF_SECURITY_ADMIN_PASSWORD=<password>
   EOF

4. Lock the mode, then confirm it. Do not print the file.

   chmod 600 grafana.env
   ls -l grafana.env

   Expected:

   -rw------- 1 <you> <group>  <size>  grafana.env

Step 3 — Start Prometheus

Prometheus must scrape itself first. If that job is down, later targets are noise.

1. Stay in $HOME/lab-dash.

   pwd

   Expected: a path that ends in lab-dash.

2. Write prometheus.yml with the self scrape only. Type the file as shown. Indent the list items with two spaces.

   cat > prometheus.yml <<'EOF'
   global:
     scrape_interval: 15s
   scrape_configs:
     - job_name: prometheus
       static_configs:
         - targets: ["localhost:9090"]
   EOF

3. Write compose.yaml. Ports bind loopback. Images are pinned.

   cat > compose.yaml <<'EOF'
   services:
     prometheus:
       image: prom/prometheus:v2.54.1
       ports:
         - "127.0.0.1:9090:9090"
       volumes:
         - ./prometheus.yml:/etc/prometheus/prometheus.yml:ro
       command:
         - --config.file=/etc/prometheus/prometheus.yml
         - --web.enable-lifecycle
     grafana:
       image: grafana/grafana:11.2.0
       ports:
         - "127.0.0.1:3000:3000"
       env_file:
         - ./grafana.env
       depends_on:
         - prometheus
   EOF

4. Start the stack. The first run pulls the two pinned images. Wait for it.

   docker compose up -d
   docker compose ps

   Expected: both services Up. Names start with the directory, lab-dash if you used $HOME/lab-dash.

   NAME                     IMAGE                     STATUS
   lab-dash-grafana-1       grafana/grafana:11.2.0    Up
   lab-dash-prometheus-1    prom/prometheus:v2.54.1   Up

5. Wait until Prometheus is ready.

   curl -sS -o /dev/null -w '%{http_code}\n' http://127.0.0.1:9090/-/ready

   Expected:

   200

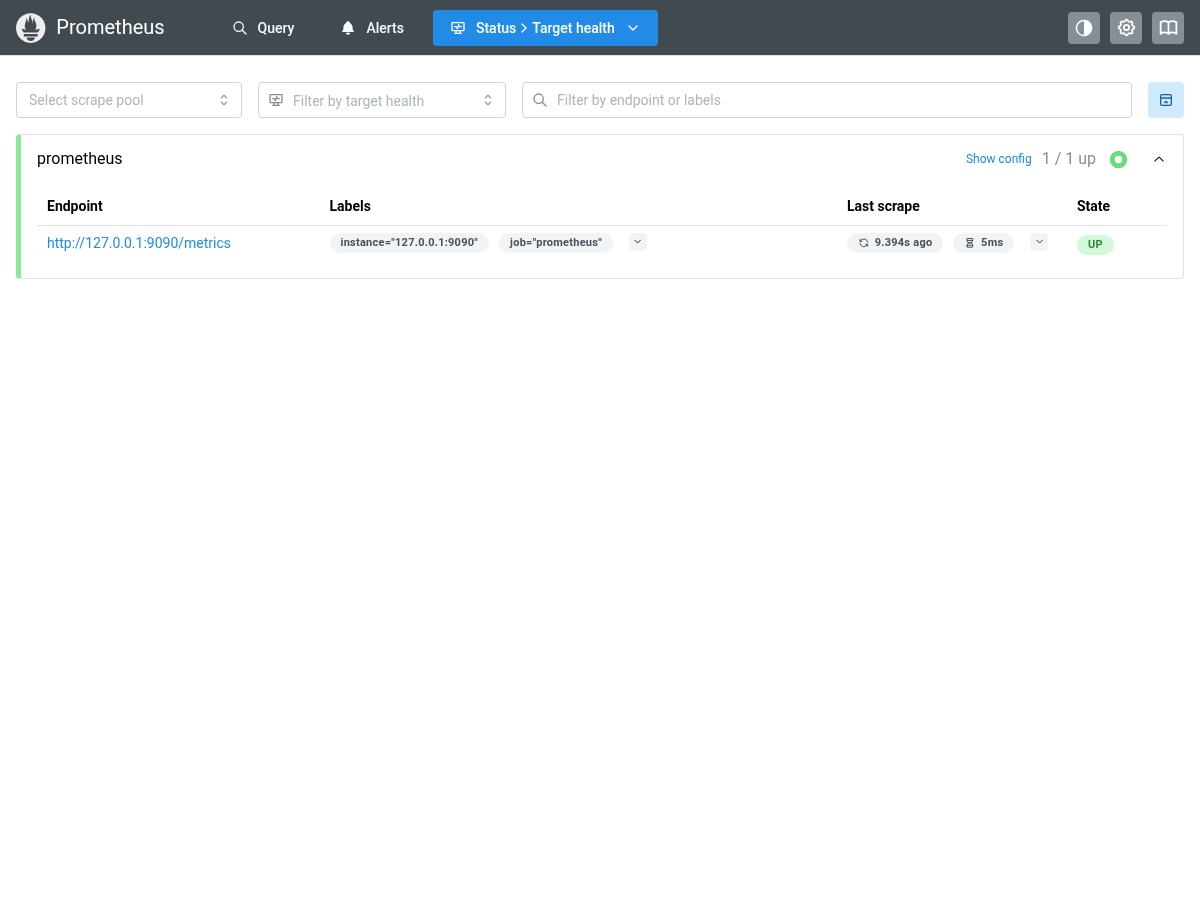

6. Open the targets page in a browser: http://127.0.0.1:9090/targets. The prometheus job must be UP. One scrape interval is 15 seconds. Refresh once if the page still says unknown.

Step 4 — Add a down target

A board that only shows UP does not prove a down target would appear. Add a name that must not answer.

1. Stay in $HOME/lab-dash. Replace prometheus.yml with both jobs. Do not append a fragment. YAML indent is part of the file.

   cat > prometheus.yml <<'EOF'
   global:
     scrape_interval: 15s
   scrape_configs:
     - job_name: prometheus
       static_configs:
         - targets: ["localhost:9090"]
     - job_name: nonsense
       static_configs:
         - targets: ["no-such-host.example.lab:9100"]
   EOF

2. Reload Prometheus. The lifecycle flag in compose is what allows this POST. Do not restart unless the reload is refused.

   curl -fsS -o /dev/null -w '%{http_code}\n' -X POST http://127.0.0.1:9090/-/reload

   Expected:

   200

   A non-200 means the file did not load. Fix the indent and POST again.

3. Wait one scrape interval, then reload the targets page: http://127.0.0.1:9090/targets.

   sleep 15
   curl -sS 'http://127.0.0.1:9090/api/v1/query?query=up'

   Expected: "status":"success". A series with "job":"prometheus" and value "1". A series with "job":"nonsense" and value "0". On the targets page, prometheus is UP and nonsense is DOWN.

Step 5 — Point Grafana at Prometheus

Grafana graphs the scrape. Inside Compose, Prometheus is the service name prometheus. Loopback inside the Grafana container is Grafana, not Prometheus.

1. Open Grafana: http://127.0.0.1:3000.

2. Sign in. Username is admin. Password is the value you put in grafana.env.

3. If Grafana asks you to change the password, click Skip, or set a new one and write that same value back into grafana.env.

4. Left sidebar: Connections → Data sources → Add new data source.

5. Choose Prometheus.

6. In Prometheus server URL, type:

   http://prometheus:9090

   Do not use http://127.0.0.1:9090 here.

7. Scroll to the bottom. Click Save & test. Expected: a green success, wording like Successfully queried the Prometheus API.

8. Left sidebar: Explore (compass). Data source: Prometheus. In the metric field, type up. Click Run query.

   Expected: two series. job="prometheus" at 1. job="nonsense" at 0.

Verification

curl -sS -o /dev/null -w '%{http_code}\n' http://127.0.0.1:9090/-/ready

Expected:

200

curl -sS 'http://127.0.0.1:9090/api/v1/query?query=up'

Expected: "status":"success", a series with "job":"prometheus" and value "1", and a series with "job":"nonsense" and value "0". Grafana Explore shows the same up series.

If a container exits, docker compose logs prometheus and docker compose logs grafana are the logs. There is no installer log file.

Next

Add a Homepage (or any link portal) at home.example.lab after the targets page is honest. Probe a name you already trust, such as https://vault.example.lab/alive, only after the self-scrape stays up. The portal link to Grafana is a convenience. It is not the prove.
